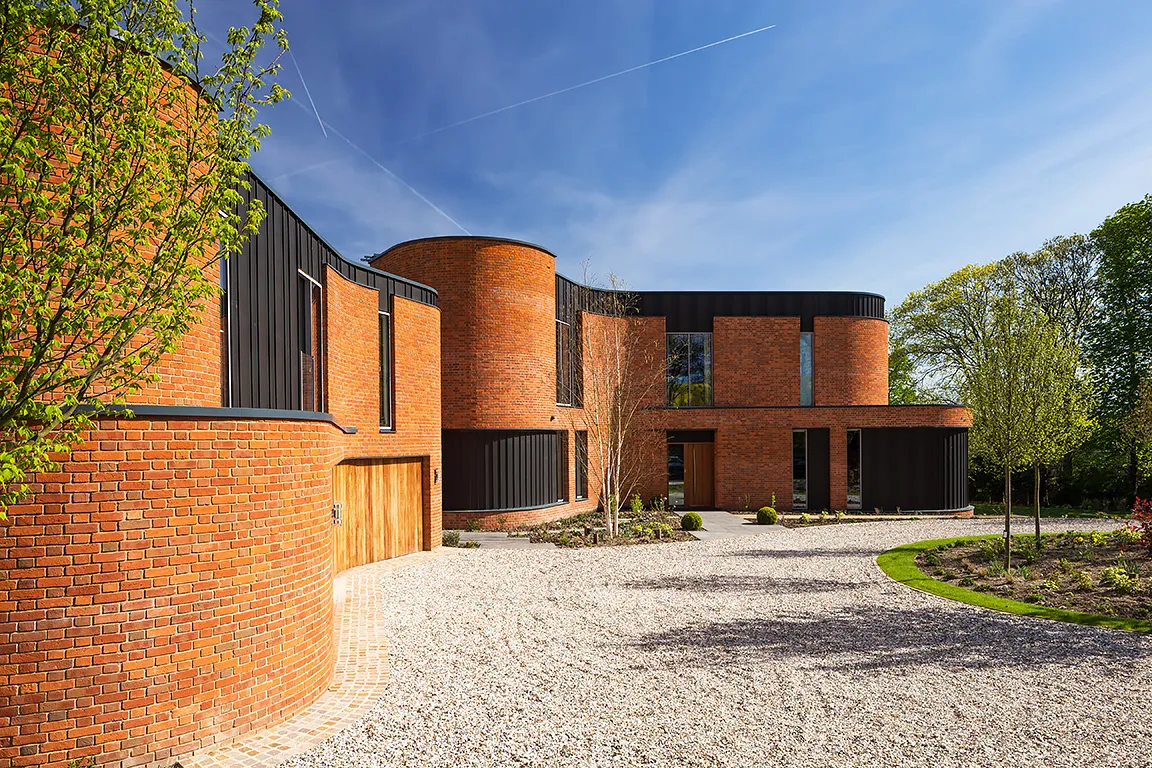

Marine grade aluminium coping system used on the Incurvo eco build.

Radius Curve Coping

Metal Radius Curve Coping is suitable for all applications

What is Radius Curved Coping?

One of our specialities is fabricating curved aluminium coping to bespoke requirements. If your project requires curved or radius metal coping for a high or low-rise building, flat or non-flat roof, we have a solution. We can manufacture and supply true curves or facetted coping in horizontal or vertical. Most complex curves can be easily achieved.

All of our aluminium copings are custom fabricated to suit individual projects and are available with quick turnaround and fast delivery.

aluminium-coping-capping-wall-copings-roof-cappings-building-height-icon

Suitable for buildings of any height

aluminium-coping-capping-wall-copings-roof-cappings-wall-width-icon

Tailor-made to fit wall widths up to 2.8m

aluminium-coping-capping-wall-copings-roof-cappings-paint-finish-icon

A wide range of colours and finishes

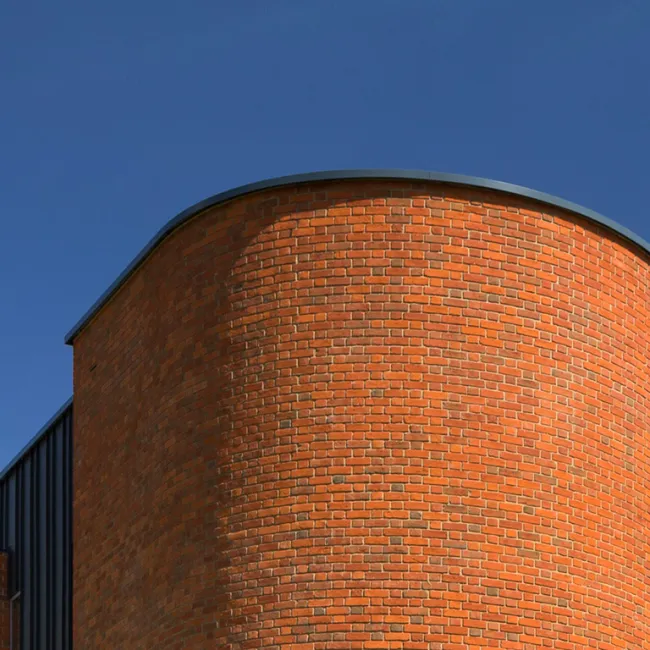

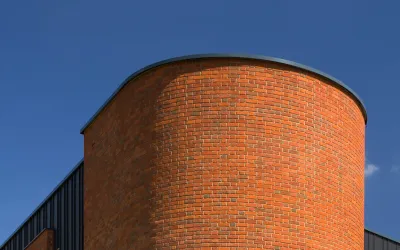

Aluminium curved coping fitted to roof line of award winning home.

Suitable for wall widths 100mm – 450mm
Manufactured from 2mm thick marine grade aluminium
Supplied complete with concealed Click-Fix bracket at 1000mm intervals
High quality extruded aluminium Click-Fix bracket with slotted holes for height adjustment
Double width jointer bracket with integral EPDM rubber seal for complete weatherproofing integrity of each joint
Suitable for level installation, making all fittings universal for ease of installation (please note: There is a risk of ponding with flat copings)
Suitable for new buildings and refurbishment applications
Click-Fix fixing method with no visible fixings or penetration of the outside coping

Polyester Powder Coated

Mill Finish

Anodized Effect

Stone Effect

Textured

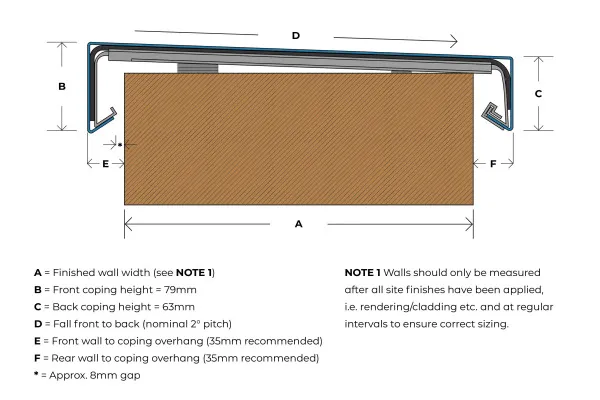

Sizing of Click-Fix Coping

Ali-Fabs Click-Fix Coping is manufactured to a fixed profile front and rear dimension, as detailed, and is made to suit wall widths of between 100mm – 450mm.

Standard front and rear projection is 35mm, which allows for a ventilation gap of approximately 17mm.

Please note: There is a risk of ponding with flat copings.

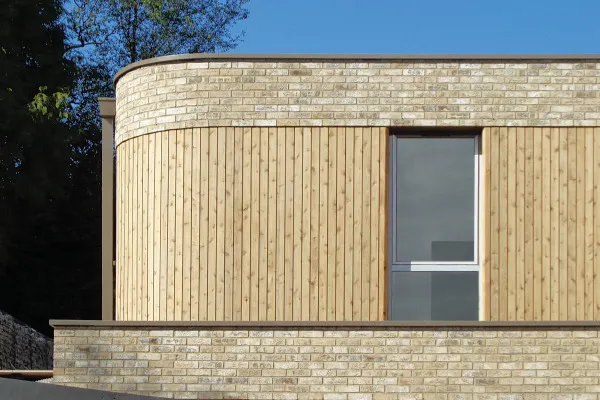

Curved or Radius Coping

Copings can be produced to a true curve to suit both internal and external situations.

Typical components for coping & caping

Standard dimensional details available on request.

90 degree External Angle 90_Ext_Angle_Coping_capping_ali-fabs

90 degree Internal Angle 90-Int-Angle_Coping_capping_ali-fabs

Apex Angle Coping-Apex_Coping_capping_ali-fabs

Internal Stop End (Right Hand Shown) Stopend-RH_Coping_capping_ali-fabs

Internal Upstand End (Left Hand Shown) Upstand-End-Left-hand_Coping_capping_ali-fabs

Raking Angle Raking-Angle_Coping_capping_ali-fabs

T-Section Coping T-Section_Coping_capping_ali-fabs

True Curve True-Curve_Coping_capping_ali-fabs

Bespoke Items
Available
on request

Downloads for Aluminium Ali-Fabs Coping

View Our Projects

Copings Used On Industrial Development

View Case Study

Ali-Fabs Copings give striking line to new Apartment block

View Case Study

Cappings and Cills give sleek architectural finish to modern home

View Case Study

Our Fascias create striking architectural lines

View Case Study

Sleek, modern Copings for a perfect finish Cotswold

View Case Study

A Co-ordinated Aluminium Finish for Contemporary Essex Home Essex

View Case Study

CREST COPING – A CLEAN FINISH FOR EVERY ANGLE

View Case Study

ALUMINIUM COPING – MADE TO FOLLOW THE CURVE

View Case Study

ALUMINIUM CLICK-FIX COPINGS

View Case Study

BBA APPROVED ALUMINIUM ARCHITECTURAL COPINGS Malabar, Daventry

View Case Study

Copings Used On Industrial Development

View Case Study

Ali-Fabs Copings give striking line to new Apartment block

View Case Study

Cappings and Cills give sleek architectural finish to modern home

View Case Study

Our Fascias create striking architectural lines

View Case Study

Sleek, modern Copings for a perfect finish Cotswold

View Case Study

A Co-ordinated Aluminium Finish for Contemporary Essex Home Essex

View Case Study

CREST COPING – A CLEAN FINISH FOR EVERY ANGLE

View Case Study

ALUMINIUM COPING – MADE TO FOLLOW THE CURVE

View Case Study

ALUMINIUM CLICK-FIX COPINGS

View Case Study

BBA APPROVED ALUMINIUM ARCHITECTURAL COPINGS Malabar, Daventry

View Case Study

Easy-to-Fit Coping

Click-Fix Coping is manufactured from aluminium sheet and specially extruded aluminium straps with a neoprene rubber seal. With a unique push and click design it is easy to install and totally weatherproof making it the ideal solution particularly for renovation projects and low-rise buildings.

Environmentally friendly

Aluminium is an environmentally friendly choice for wall coping, being 100% recyclable and the most abundant metal in nature. Over 90% of the aluminium we use in manufacturing is from recycled sources.

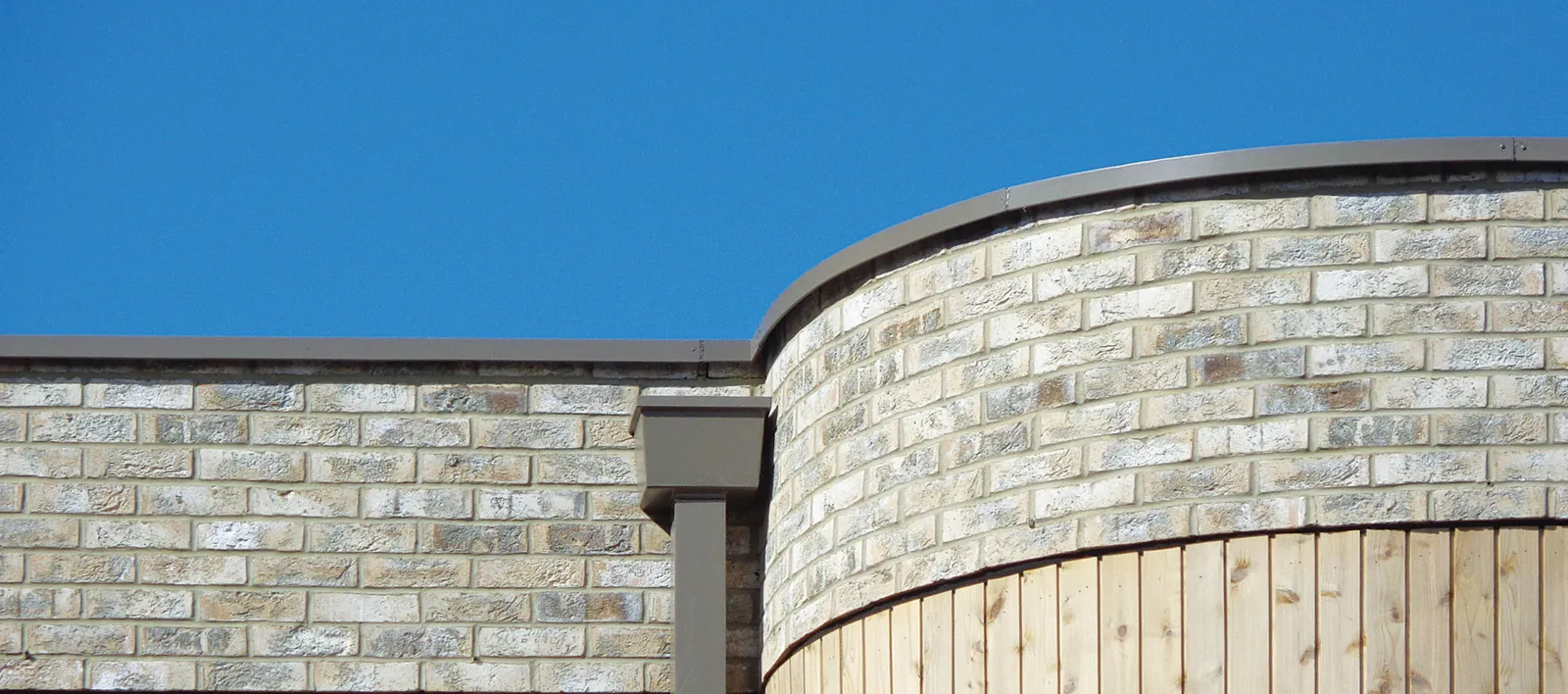

Curved or Radius Coping

We specialise in curved coping. If your project requires curved or radius coping we have a solution. We can manufacture and supply true curves or facetted coping in horizontal or vertical. Most complex curves can be easily achieved.
