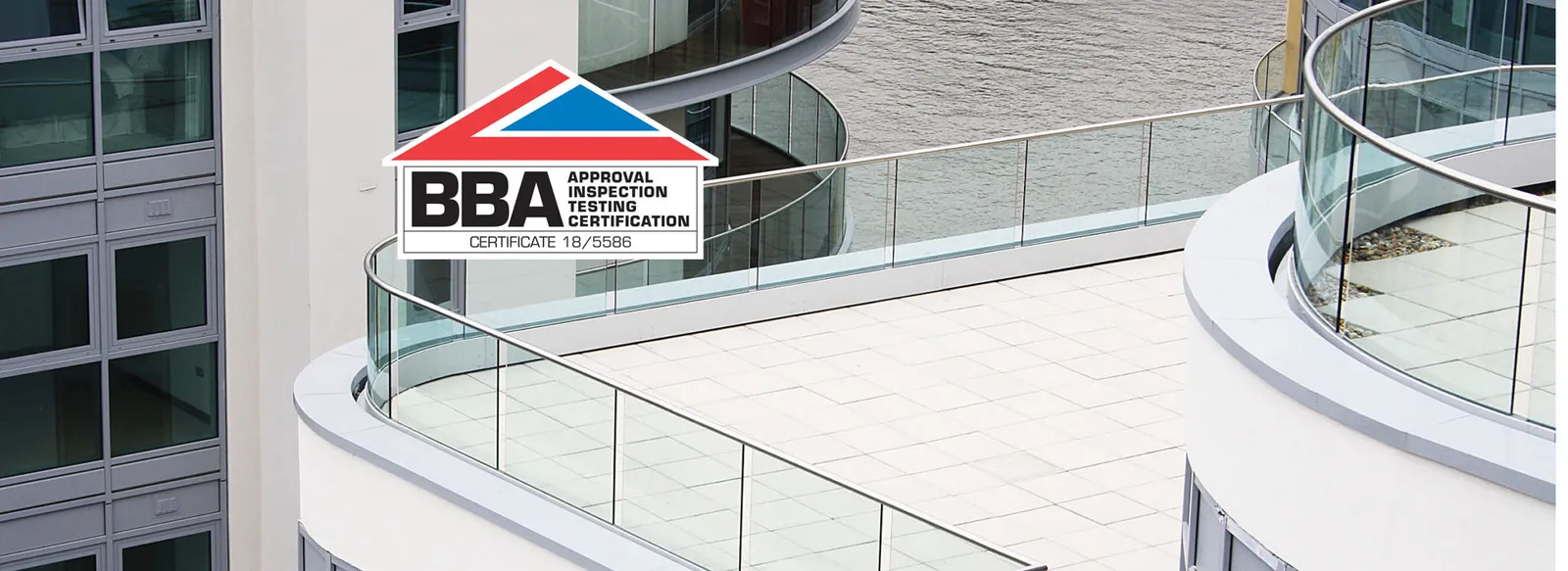

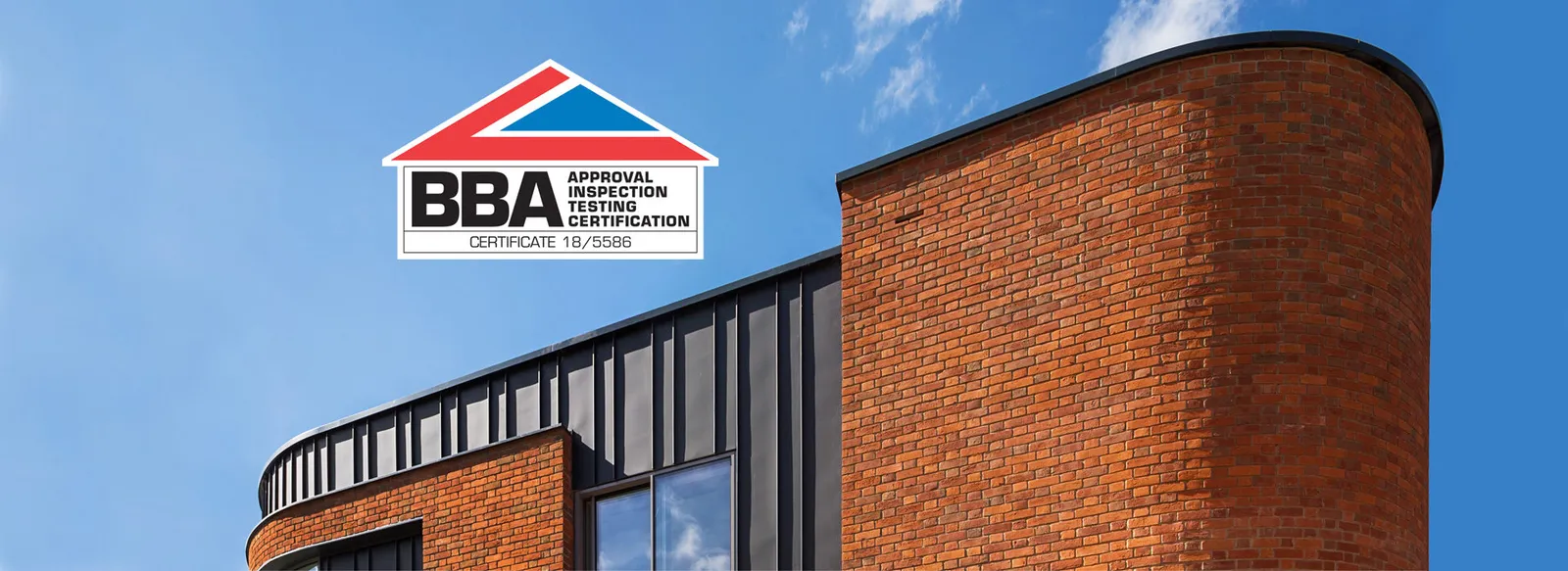

- BBA-approved – British Board of Agrément certificate no 18/5586
- Suitable for wall widths: 150mm – 950mm
- Manufactured from 2mm and 3mm marine grade aluminium
- Supplied complete with concealed fixing bracket at 1000mm intervals
- High quality extruded aluminium bracket with slotted holes for site adjustment
- Double width jointer bracket with integral EPDM rubber seal for complete weatherproofing integrity of each joint
- Manufactured with integral fall at 2° pitch (for use with on-site packers)
- No visible fixings or penetration of the outside coping

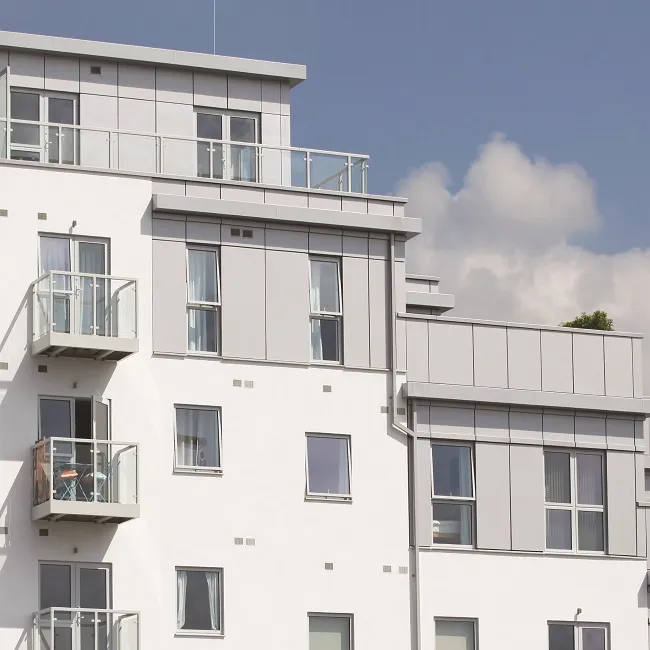

Our Aluminium Architectural Coping is available in a wide range of colours and finishes, including RAL and BS colours, heritage textured finish, metallic and anodised. We can source any colour to colour match your project or we also supply capping uncoated in the standard mill finish if required.
Polyester Powder Coated
Anodized Effect
Stone Effect
Textured
Mill Finish
Architectural Coping Size
Ali-Fabs Architectural Coping is manufactured to a fixed profile front and rear dimension, as detailed, and is made to suit all widths of between 150mm – 950mm.
Standard front and rear projection is 35mm, which allows for a ventilation gap of approximately 8mm.
Curved or Radius Coping
Parapet copings can be produced to a true curve to suit both internal and external situations.
Typical components for aluminium coping & capping
Standard dimensional details available on request.
Bespoke Items
Available
on request
Product downloads for Aluminium Architectural Coping.
Crest Coping
Click-Fix Coping
Capping
