- Suitable for wall widths up to 1200mm
- Manufactured from 2mm or 3mm thick marine grade aluminium
- Supplied complete with concealed fixing bracket at 750mm intervals
- High quality engineered fixing bracket 4mm thick with integral 10mm fall (20mm on walls over 550mm wide) for easy installation
- Double width jointer bracket with integral V-DRIP channel is supplied at each joint for complete weatherproofing integrity
Our Aluminium Coping is available in a wide range of colours and finishes, including RAL and BS colours, heritage textured finish, metallic and anodised. We can source any colour to colour match your project or we also supply capping uncoated in the standard mill finish if required.
Polyester Powder Coated
Anodized Effect
Stone Effect
Textured
Mill Finish

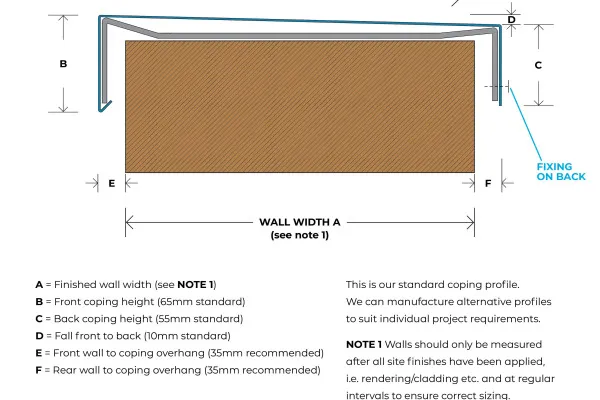

Sizing of Standard Coping
The standard dimension details shown can be used as a guide,
please note that any configuration can be produced to suit
individual project requirements.
Coping Girth
Equals wall width (A) plus 200mm providing standard front
(E) and back (F) dimensions.

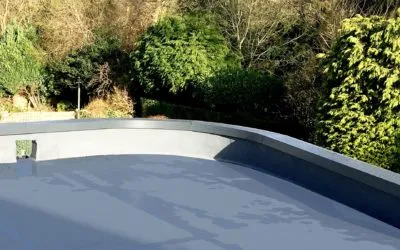

Curved or Radius Coping
Copings can be produced to a true curve to suit both internal
and external situations.
Typical components for coping & capping
Standard dimensional details available on request.
90° External Angle
90° Internal Angle
Apex Angle
Internal Stop End (Right Hand Shown)
Internal Upstand End (Left Hand Shown)
Raking Angle
T-Section Coping
True Curve
Bespoke Items
Available
on request
Downloads for Aluminium Crest Coping
Architectural Coping
Click-Fix Coping
Capping
